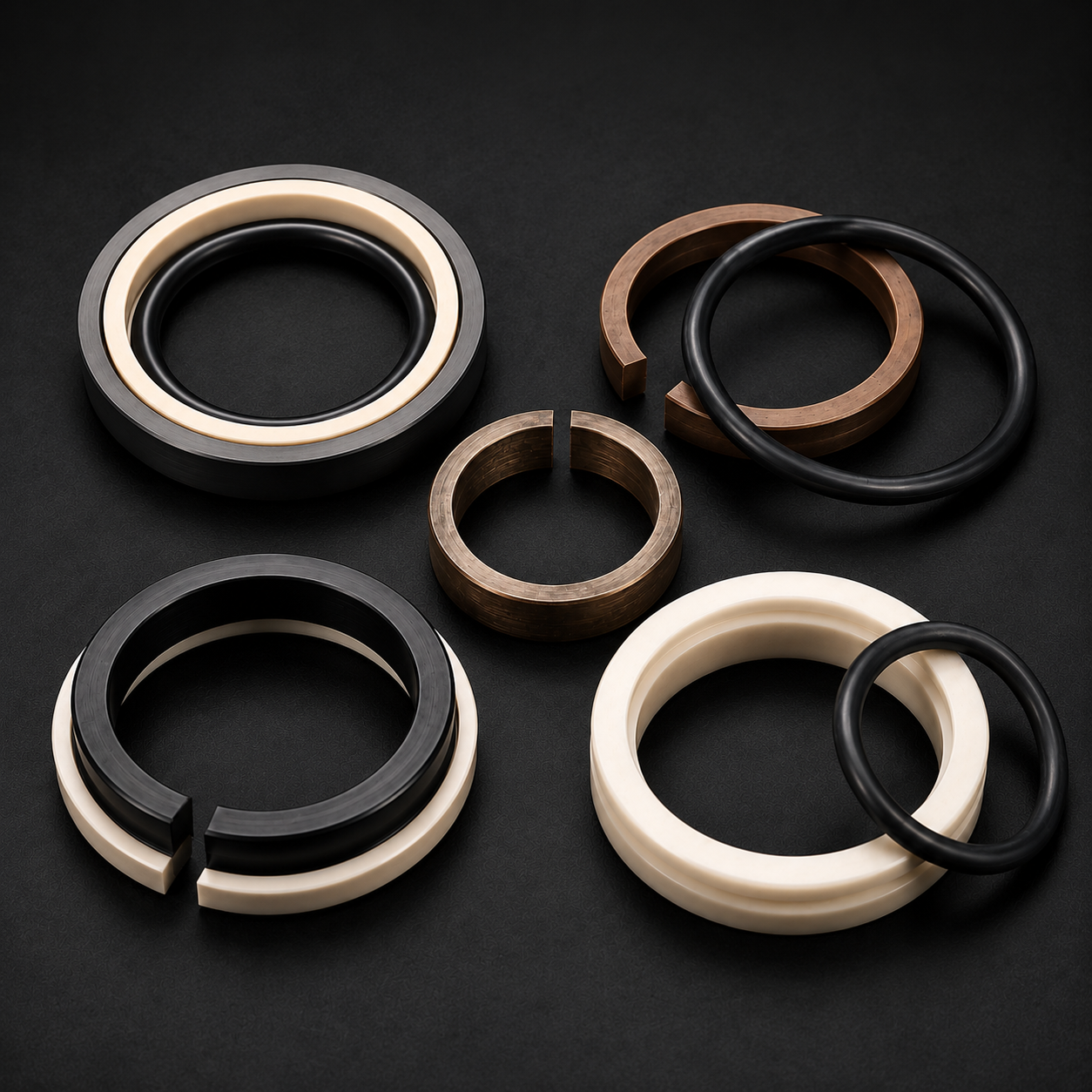

Top Backup Ring Manufacturers in India
whatsapp-now
enquire-now

JD Seals is trusted Backup Ring Manufacturers, Suppliers and Exporters in India. we provide precision O-ring backup rings engineered to provide dependable support in demanding industrial sealing applications.

We combine consistent product quality, competitive pricing, and strong manufacturing capabilities to meet both standard and customized requirements. Our Anti-extrusion backup rings are designed to help protect O-rings from extrusion while supporting reliable sealing performance under pressure, temperature variations, and challenging operating conditions.

We carefully control material selection, dimensional accuracy, and production quality to maintain consistent performance. With flexible specifications, responsive service, and application-focused solutions, we help customers choose reliable backup rings suited to their specific sealing requirements.

What Is a Backup Ring and How Does It Protect an O-Ring?

A backup ring is a supporting component fitted alongside an O-ring to minimize extrusion through the clearance gap during operation. These O-ring support rings provide additional mechanical stability when pressure, temperature changes, or movement may affect the seal. O-ring extrusion prevention makes them especially useful in hydraulic, pneumatic, automotive, industrial, and fluid-control systems where dependable and long-lasting sealing performance is required. A Backup Ring for O-ring applications provides additional support where extrusion risks are present.

Types of Backup Rings

As Backup Ring Manufacturers in India, We offer multiple precision-engineered designs to meet varied O-ring sealing, pressure, installation, and operating requirements. These Back-up rings are available in configurations suited to different sealing conditions.

  • Types by Cut Configuration:
    • Solid (Uncut) Backup Rings: These continuous rings provide uninterrupted O-ring extrusion protection and strong support in high-pressure sealing systems. They are ideal for open glands but generally require specialized installation methods where the groove is enclosed. Solid backup rings are particularly suitable where continuous support is required.
    • Scarf Cut (Split) Backup Rings: These rings feature a diagonal cut that makes installation easier in closed or restricted grooves. Their flexible design offers practical Backup rings for O-rings applications, although correct sizing and installation are important during pressure cycling. Split backup rings are commonly selected where easier installation is required.
    • Spiral (Multi-Turn) Backup Rings: These rings use a helical, multi-turn design that combines installation flexibility with overlapping support around the O-ring. They are well suited to dynamic sealing applications where reliable O-ring extrusion prevention is required. Spiral backup rings provide flexibility for demanding sealing arrangements.
  • Types by Face Design Configuration:
    • Flat (Washer-Style) Backup Rings: These rings have two flat, parallel faces and provide straightforward mechanical support beside the O-ring. Their simple, symmetrical construction makes them a practical choice for various general-purpose sealing arrangements.
    • Contoured Backup Rings: These rings feature a curved surface designed to closely support the O-ring's rounded profile and distribute contact more effectively. Their shaped geometry can provide stable seal support rings performance in demanding sealing applications.

Technical Specifications of Backup Ring

As Backup Ring Suppliers in India, we provide accurately manufactured components in diverse materials, sizes, profiles, and configurations for demanding industrial sealing applications.

Specification Details
Product Type Backup Ring / Anti-Extrusion Ring
Sizing Designed for standard O-ring sizes, including AS568 dash numbers
Dimensions ID, thickness, axial height, and groove-specific dimensions
Configurations Solid, scarf-cut/split, spiral, flat, and contoured
Materials PTFE, PEEK, TPE, NBR, FKM/Viton, and other suitable compounds
PTFE Properties Excellent chemical resistance, low friction, and good temperature stability
PEEK Properties High strength, rigidity, wear resistance, and dimensional stability
Temperature Range Material-dependent; selected grades can operate from approximately -54°C to 260°C
Pressure Capability Application-dependent, with specialized designs suitable for pressures above 15,000 psi
Installation Solid rings suit open glands; split and spiral designs simplify installation in restricted grooves
Application Hydraulic, pneumatic, automotive, industrial, and high-pressure sealing systems
Customization Custom sizes, profiles, and materials available as per application requirements
Primary Function Supports the O-ring and helps prevent extrusion under pressure

Key Features of Backup Ring

As Backup Ring Exporters in India, we deliver quality-focused products engineered for excellent extrusion resistance, dimensional accuracy, and dependable sealing support.

  • Excellent Extrusion Resistance: Our Anti-extrusion rings provide firm support to O-rings and help prevent seal material from entering clearance gaps under pressure.
  • Multiple Material Options: We offer PTFE backup rings, PEEK, NBR, FKM, and other materials to match different pressure, temperature, and chemical conditions.
  • Precision Engineering: We manufacture each ring with accurate dimensions and consistent profiles to ensure proper fit within the sealing groove.
  • Flexible Configurations: Solid, split, spiral, flat, and contoured designs provide suitable solutions for different installation and operating requirements.
  • High-Pressure Capability: Our High pressure backup rings are designed to support reliable sealing performance in demanding hydraulic and industrial systems.

Benefits of Backup Ring

As Backup Ring Manufacturers in India, we provide effective sealing solutions that enhance O-ring performance, extend service life, and minimize maintenance requirements across demanding applications.

  • Extended Seal Service Life: Effective O-ring support helps reduce extrusion, wear, and premature seal damage during operation.
  • Improved Sealing Reliability: A properly selected Backup ring seal helps maintain stable sealing performance during pressure changes and demanding working conditions.
  • Reduced Maintenance: Better protection of the primary seal, together with Wear Ring/Guide Ring components, can minimize frequent replacements and help lower maintenance requirements.
  • Versatile Application Performance: Different Backup ring materials and configurations allow selection according to specific operating environments.
  • Cost-Effective Solution: Durable construction and improved seal protection can contribute to longer service intervals and lower overall sealing costs.

Applications of Backup Ring

As Backup Ring Suppliers in India, we serve diverse industries with sealing components suitable for hydraulic, pneumatic, automotive, industrial, fluid-control, and high-pressure equipment.

  • Hydraulic Cylinders: Backup rings for hydraulic seals provide additional support to O-rings exposed to high hydraulic pressure and recurring movement. Hydraulic backup rings help support dependable sealing in these applications.
  • Hydraulic Pumps and Valves: They help maintain dependable sealing in pumps, control valves, and other pressure-handling hydraulic equipment.
  • Pneumatic Systems: Seal support rings help stabilize O-rings and Pneumatic Seals in cylinders, actuators, and air-control components.
  • Automotive Equipment: Backup rings are used in automotive hydraulic, fuel, transmission, steering, and other sealing assemblies.
  • Industrial Machinery: They support O-rings in machinery, processing equipment, pumps, and mechanical systems operating under demanding conditions.
  • High-Pressure Equipment: Backup rings for high pressure applications help minimize extrusion risks where elevated pressure can affect conventional O-ring performance.
  • Fluid-Control Systems: They provide additional seal support in manifolds, valves, actuators, and equipment handling various industrial fluids.
  • Oil and Gas Equipment: Suitable sealing configurations help protect O-rings used in demanding equipment exposed to pressure, temperature, and challenging service conditions.

Why Choose Us?

  • Engineered for Reliable Sealing: We produce precision O-ring backup rings with consistent dimensions and quality-focused manufacturing for dependable sealing performance.
  • Built Around Your Application: We provide customized anti-extrusion backup rings, along with Custom Rubber Components, in suitable materials, profiles, and configurations to match specific pressure, temperature, and operating requirements.
  • Quality That Delivers Value: We combine reliable Seal backup rings, competitive pricing, and responsive service to provide practical solutions for both standard and specialized sealing needs.

Choose JD Seals is well-known Backup Ring Manufacturers, Suppliers and Exporters in India. We provide dependable backup ring solutions designed to support O-rings and improve sealing performance in demanding applications. With our focus on quality, competitive pricing, manufacturing flexibility, and application-specific solutions, we help customers select suitable sealing components for their requirements. Our goal is to deliver consistent products that provide reliable O-ring extrusion protection and long-term value. For more information, contact us.

FAQ’s

A backup ring provides additional mechanical support when pressure, clearance, or operating conditions could cause O-ring extrusion. It can also help improve seal reliability and service life.

Common materials include PTFE, PEEK, nylon, NBR, and FKM, with selection based on pressure, temperature, chemical exposure, and application requirements. Nylon backup rings and PEEK backup rings are among the available material options for suitable applications.

Yes, suitable High pressure backup rings can provide additional O-ring support in demanding hydraulic and industrial sealing systems. The correct design must be selected according to pressure, gap, material, and operating conditions.

Yes, Backup rings for hydraulic seals are widely used to help protect O-rings from extrusion in hydraulic cylinders, valves, pumps, and other pressure equipment. Rubber backup rings may also be considered where the material is compatible with the operating conditions.
